Double Module DM36

150mm internal diameter for smaller output inserts, stoves and solid fuel/oil cookers. Click the image for component and build details.

Schiedel Isokern DM block system is a high quality system chimney. The double-wall system maintains flue gas temperatures while preventing heat transference to the outer casing. The separation of the inner and outer components also allows for thermal movement, reducing the risk of cracking and subsequent leaking or staining. It is simple and quick to build.

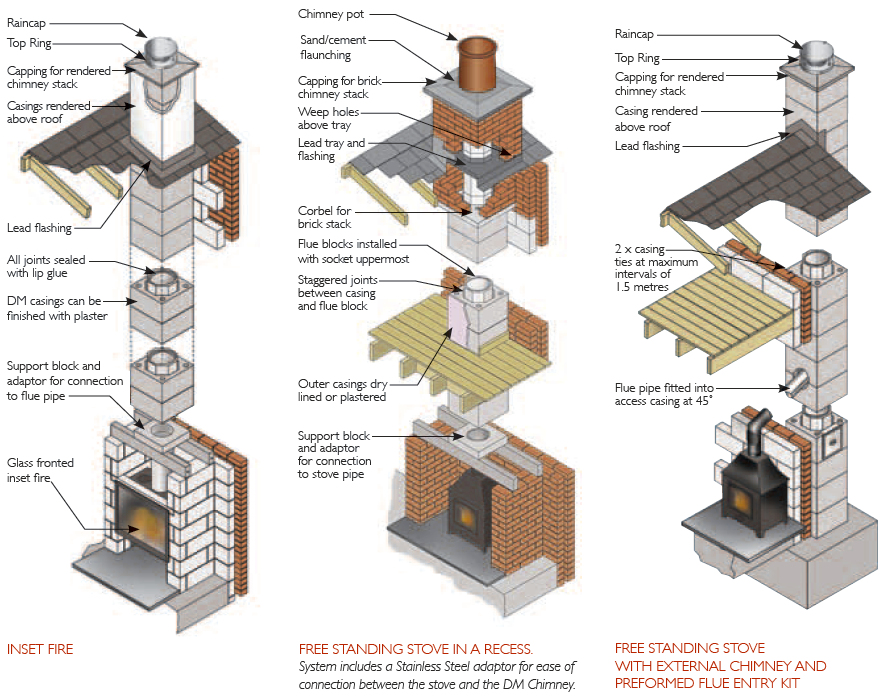

Component and build diagram for Double Module DM36 Component & build diagram – tap to enlarge

Products

16 products
Image Product Width
(mm)		 Depth
(mm)		 Height
(mm)		 Int. dia
(mm)		 Ext. dia
(mm)		 Weight
(kg)		 Buy
360mm square casing 250mm highSchiedel code 130714 360 360 250 15
360mm square access casing 250mm high (150mm i/d access hole)Schiedel code 130712 360 360 250 13
360mm square casing & soot door 250mm highSchiedel code 130713 360 360 250 18
DM36 45° flue entry kit (four parts) 500mm highSchiedel code 130709 500 42
150mm i/d 255 x 255 starter flue block 125mm highSchiedel code 126363 255 255 125 150 4
150mm i/d 255x255 flue block 250mm highSchiedel code 126369 255 255 250 150 8
150mm i/d 255x255 access flue block 500mm high (177mm i/d access hole)Schiedel code 126368 255 255 500 150 16
570mm square corbel for brickwork 75mm highSchiedel code 130715 570 570 75 32
490mm square capping - renderSchiedel code 130710 490 490 13
690mm square capping - brickworkSchiedel code 130711 690 690 31
150mm i/d 360 x 435 offset block (86mm - 30° offset) 150mm highSchiedel code 126378 360 435 150 150 25
150mm i/d 360 square support block 100mm highSchiedel code 130716 360 360 100 150 15
150mm i/d (205mm o/d) stainless steel adaptorSchiedel code 126373 150 205
125-150mm i/d (205mm o/d) stainless steel decreaser adaptorSchiedel code 126357 205
Top Ring (for ventilation)Schiedel code 135070
Raincap (with fixing rods for top ring)Schiedel code 130732

Delivery prices calculated upon enquiry dependent on volume and weight of shipment. Can’t see what you need? Ask us – we supply far more than is listed online.
