Double Module DM44

180mm and 200mm internal diameters for inserts, stoves and open fires. Click the image for component and build details.

Schiedel Isokern DM block system is a high quality system chimney. The double-wall system maintains flue gas temperatures while preventing heat transference to the outer casing. The separation of the inner and outer components also allows for thermal movement, reducing the risk of cracking and subsequent leaking or staining. It is simple and quick to build.

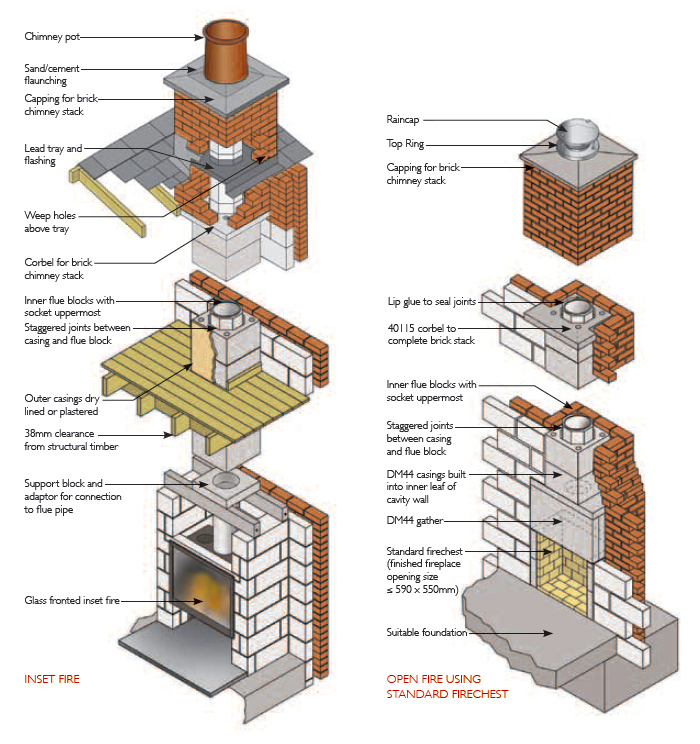

Component and build diagram for Double Module DM44 Component & build diagram – tap to enlarge

Products

27 products
Image Product Width
(mm)		 Depth
(mm)		 Height
(mm)		 Int. dia
(mm)		 Ext. dia
(mm)		 Weight
(kg)		 Buy
440mm square casing 300mm highSchiedel code 130727 440 440 300 30
440mm square access casing 300mm high (220mm i/d access hole)Schiedel code 130725 440 440 300 29
440mm square casing & soot door 300mm highSchiedel code 130726 440 440 300 36
440mm 180mm i/d 45° flue pipe entry kit (4 parts) 600mm highSchiedel code 130719 440 440 600 180 86
440mm 200mm i/d 45° flue pipe entry kit (4 parts) 600mm highSchiedel code 130722 440 440 600 200 84
180mm i/d 310 x 310 starter flue block 150mm highSchiedel code 130720 310 310 150 180 8
200mm i/d 310 x 310 starter flue block 150mm highSchiedel code 127684 310 310 150 200 7
180mm i/d 310 x 310 flue block 300mm highSchiedel code 127068 310 310 300 180 15
200mm i/d 310 x 310 flue block 300mm highSchiedel code 127683 310 310 300 200 14
180mm i/d flue 310 x 310 access block 600mm highSchiedel code 130717 310 310 600 180 28
200mm i/d flue 310 x 310 access block 600mm highSchiedel code 127682 310 310 600 200 26
650mm square corbel for brickwork 75mm highSchiedel code 130728 650 650 75 40
650 x 560mm offset corbel for brickwork 75mm highSchiedel code 130235 650 560 75 34
740mm T corbel for external brickwork 75mm highSchiedel code 130818 75 47
570mm square capping for renderSchiedel code 130723 570 570 18
820mm square capping for brickworkSchiedel code 130724 820 820 44
180mm i/d 440 x 500 offset block (56mm - 30° offset) 100mm highSchiedel code 135082 440 500 100 180 22
180mm i/d 440 x 500 offset block (86mm - 30° offset) 150mm highSchiedel code 130718 440 500 150 180 22
200mm i/d 440 x 500 offset block (56mm - 30° offset) 100mm highSchiedel code 127686 440 500 100 200 20
200mm i/d 440 x 500 offset block (86mm - 30° offset) 150mm highSchiedel code 127687 440 500 150 200 30
180mm i/d 440mm square support block 100mm highSchiedel code 130721 440 440 100 180 22
200mm i/d 440mm square support block 100mm highSchiedel code 130730 440 440 100 200 20
200mm i/d (255mm o/d) stainless steel adaptorSchiedel code 127691 200 255
150-200mm i/d (255mm o/d) stainless steel decreaser adaptorSchiedel code 127671 255
175-200mm i/d (255mm o/d) stainless steel decreaser adaptorSchiedel code 127672 255
Top Ring (for ventilation)Schiedel code 130675
Raincap (with fixing rods for top ring)Schiedel code 130732x

Delivery prices calculated upon enquiry dependent on volume and weight of shipment. Can’t see what you need? Ask us – we supply far more than is listed online.
