Double Module DM54

300mm and 345mm internal diameters for Magnum firechests and larger appliances, inserts and open fires. Click the image for component and build details.

Schiedel Isokern DM block system is a high quality system chimney. The double-wall system maintains flue gas temperatures while preventing heat transference to the outer casing. The separation of the inner and outer components also allows for thermal movement, reducing the risk of cracking and subsequent leaking or staining. It is simple and quick to build.

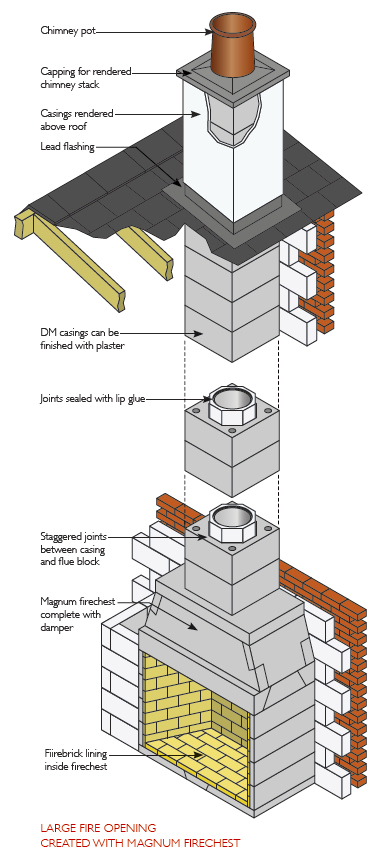

Component and build diagram for Double Module DM54 Component & build diagram – tap to enlarge

Products

14 products
Image Product Width
(mm)		 Depth
(mm)		 Height
(mm)		 Int. dia
(mm)		 Ext. dia
(mm)		 Weight
(kg)		 Buy
545mm square casing 300mm highSchiedel code 130708 545 545 300 40
300mm i/d 420 x 420 starter flue block 150mm highSchiedel code 129031 420 420 150 300 11
345mm i/d 420 x 420 starter flue block 150mm highSchiedel code 129093 420 420 150 345 11
300mm i/d 420 x 420 flue block 300mm highSchiedel code 129033 420 420 300 300 22
345mm i/d 420 x 420 flue block 300mm highSchiedel code 129094 420 420 300 345 22
800mm square corbel for brickwork 75mm highSchiedel code 130735 800 800 75 57
670mm square capping for renderSchiedel code 130733 670 670 20
950mm square capping for brickworkSchiedel code 130734 950 950 46
300mm i/d 545 x 635 offset block (86mm - 30° offset) 150mm highSchiedel code 129038 545 635 150 300 44
345mm i/d 545 x 635 offset block (86mm - 30° offset) 150mm highSchiedel code 129092 545 635 150 345 40
300mm i/d 545mm square support block 100mm highSchiedel code 129043 545 545 100 300 30
300mm i/d (365mm o/d) stainless steel adaptorSchiedel code 129039 300 365
Top Ring (for ventilation)Schiedel code 135093
Raincap (with fixing rods for top ring)Schiedel code 130732y
